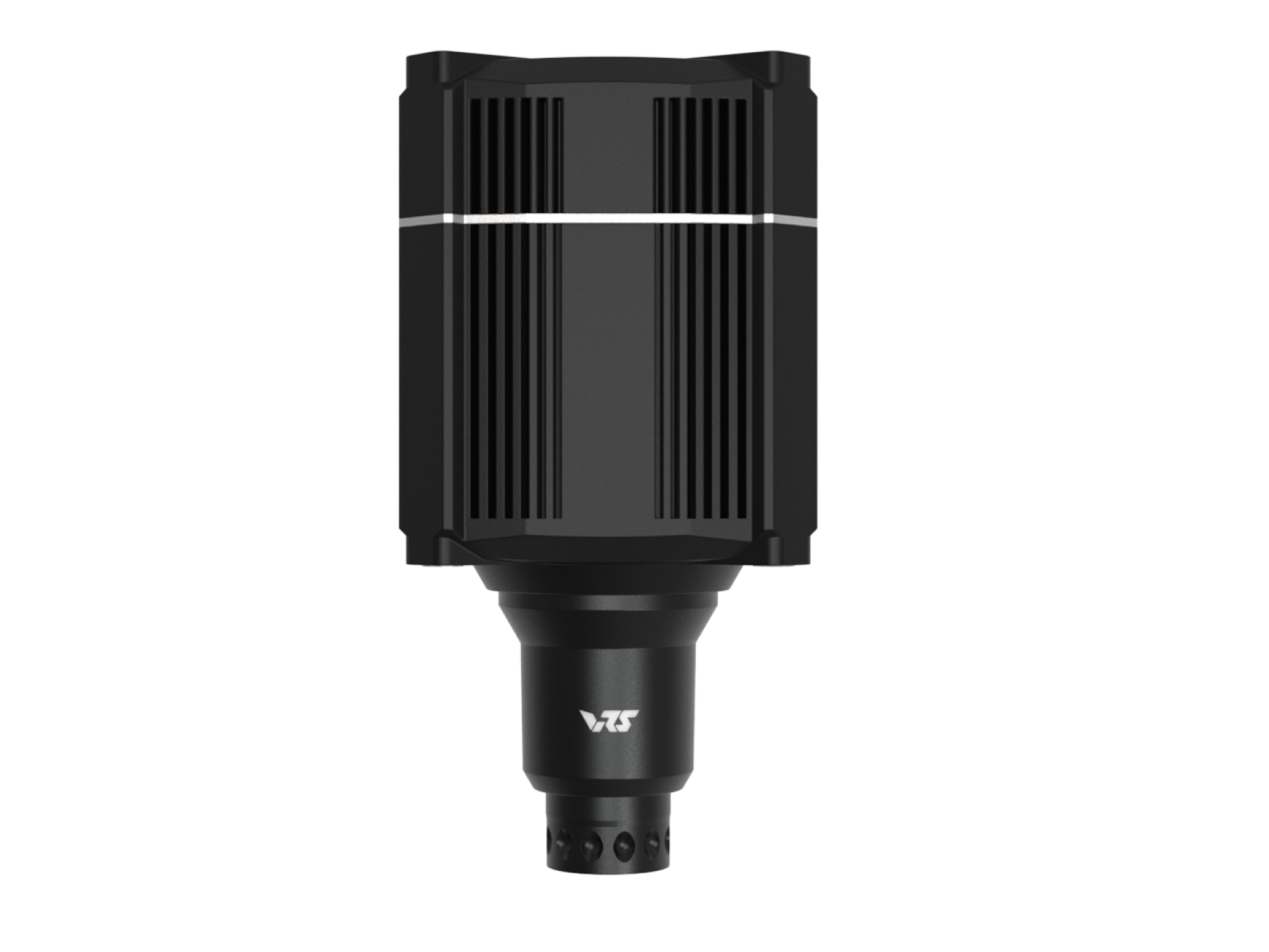

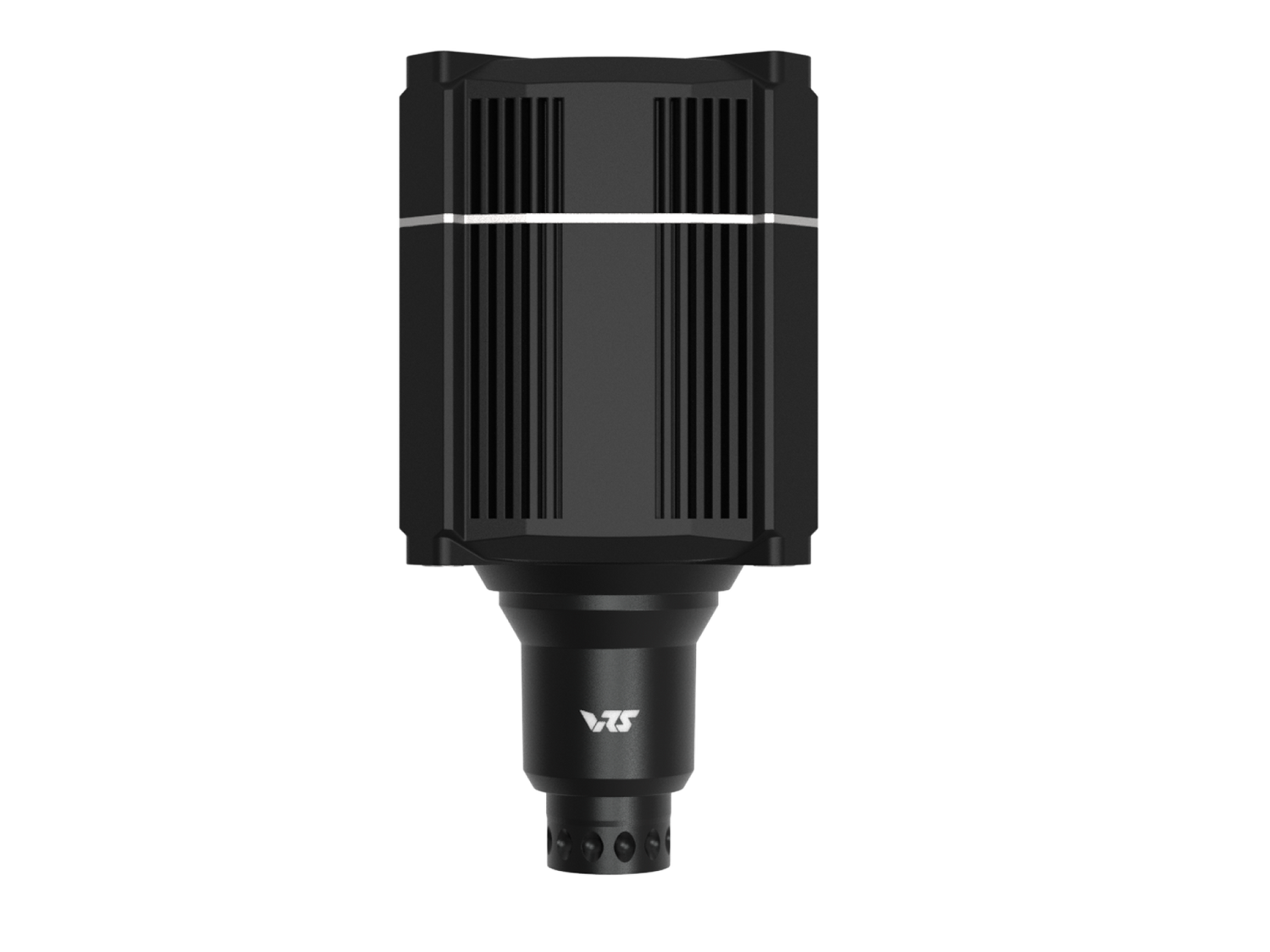

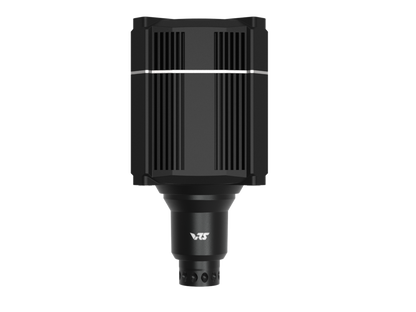

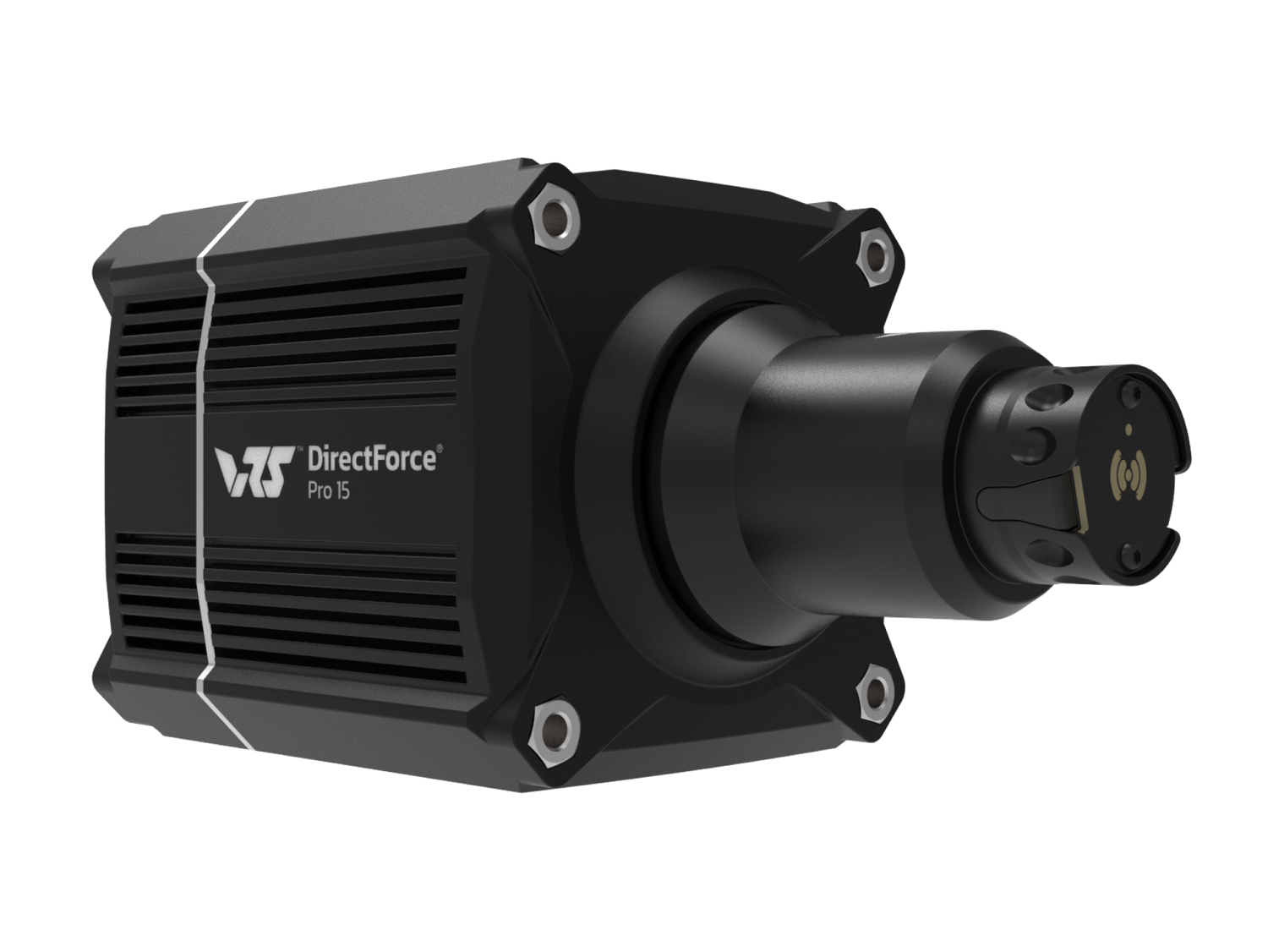

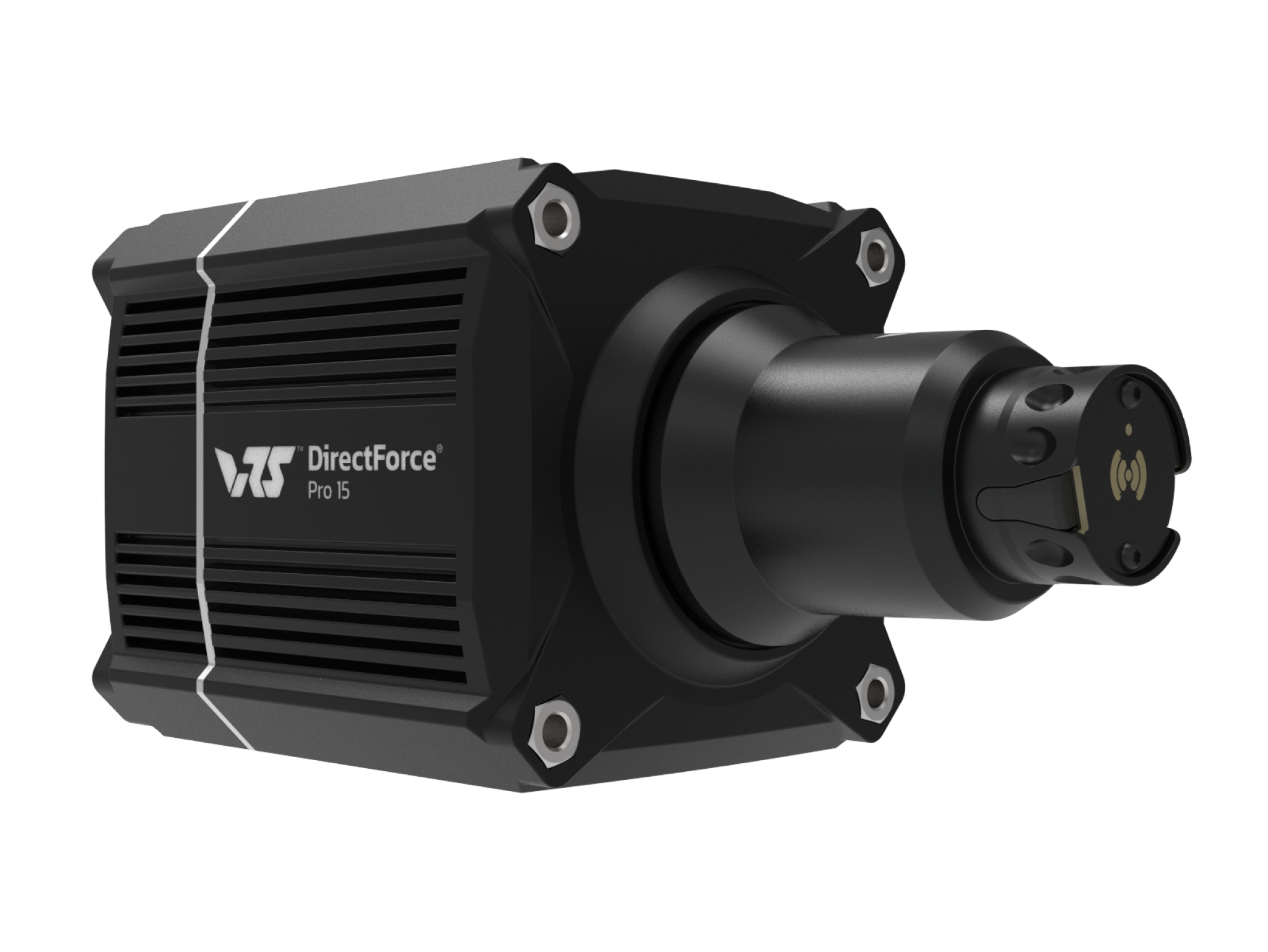

VRS DirectForce® DFP15 Wheelbase

Regular price: €627,89
Regular price
Sale price: €627,89

Tax included.

Experience cutting-edge performance like never before in a compact design, built with premium materials that are made to last. The wheel base is rated at 15Nm, equipped with a 21-bit encoder and an industry-leading 5-pole motor! The DFP15 is designed to satisfy your driving needs whether you are a sprint or an endurance driver.

Our integrated QR with USB-pass through connectivity via slip ring is also designed to give you endless compatibility to mix and match your favorite hardware with our powerful wheel base.

15Nm Peak Torque
Leading servo motor architecture (5-Pole Motor)
No noticeable cogging. Ultra low-latency & precise force feedback
21-bit encoder resolution
USB-Pass Through Connectivity via slip ring
Integrated NRG-style QR & integrated Controller in a durable aluminum housing
360Hz iRacing ready
Increased compatibility with third-party steering wheels via the QR Connect Wheel Adapter

Tech Specs

Feature	Detail
Platform	PC
FFB Drive System	Direct Drive
Motor Type	5-Pole Motor
Communication Method	USB
Max Wheel Rotation	Software defined, configurable +/- 90° to +/- 1080°
Peak Torque	15 Nm
Peak Power	200 W
Input Voltage	110V~220V AC, external power brick (200W)
USB Refresh Rate	1000 Hz
Encoder Resolution	21-bits/10 kHz
Indicator	Yes (2 x LEDs on RJ45 connector)
App Functions	Supported (via our Config Tool)

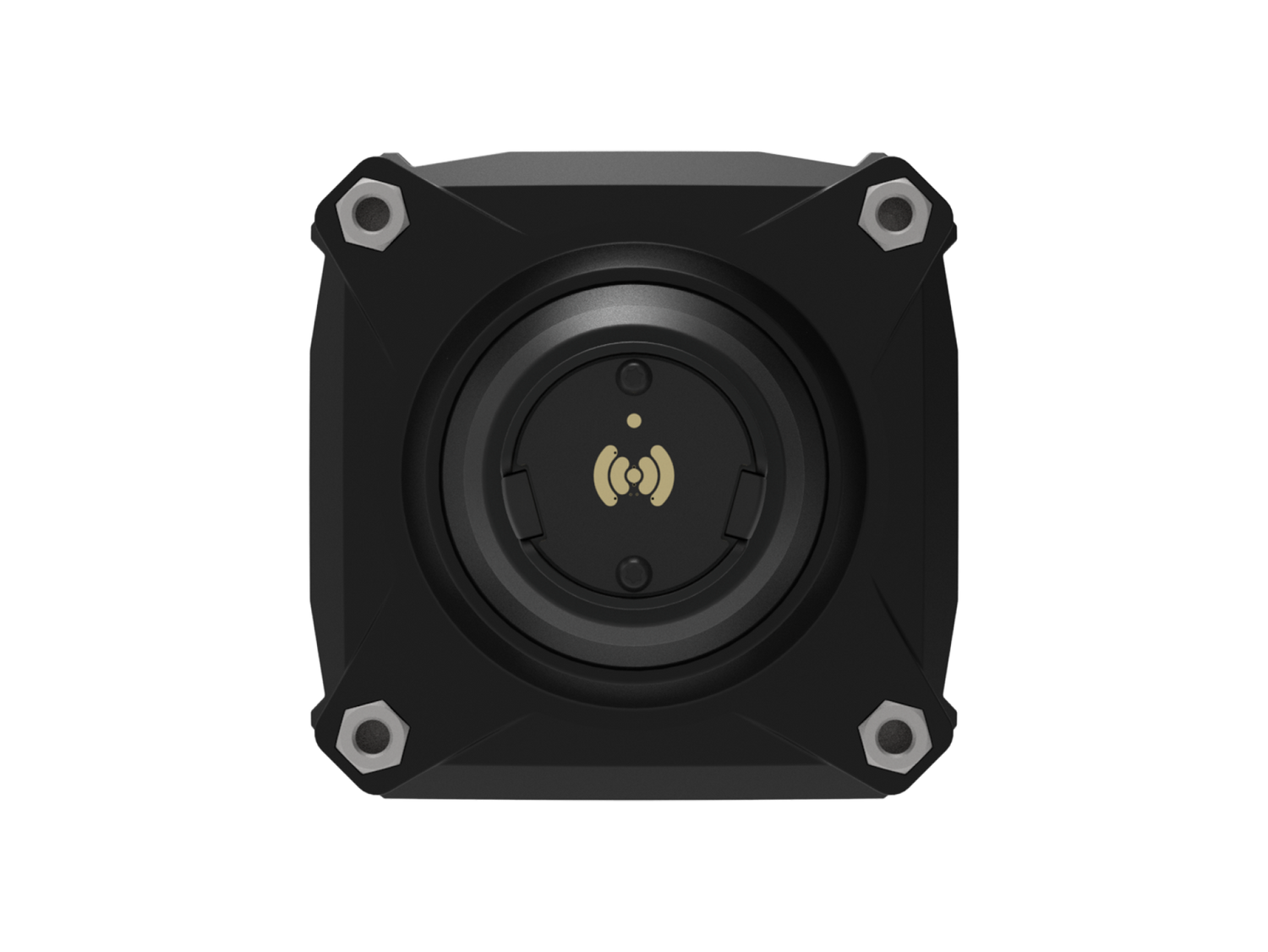

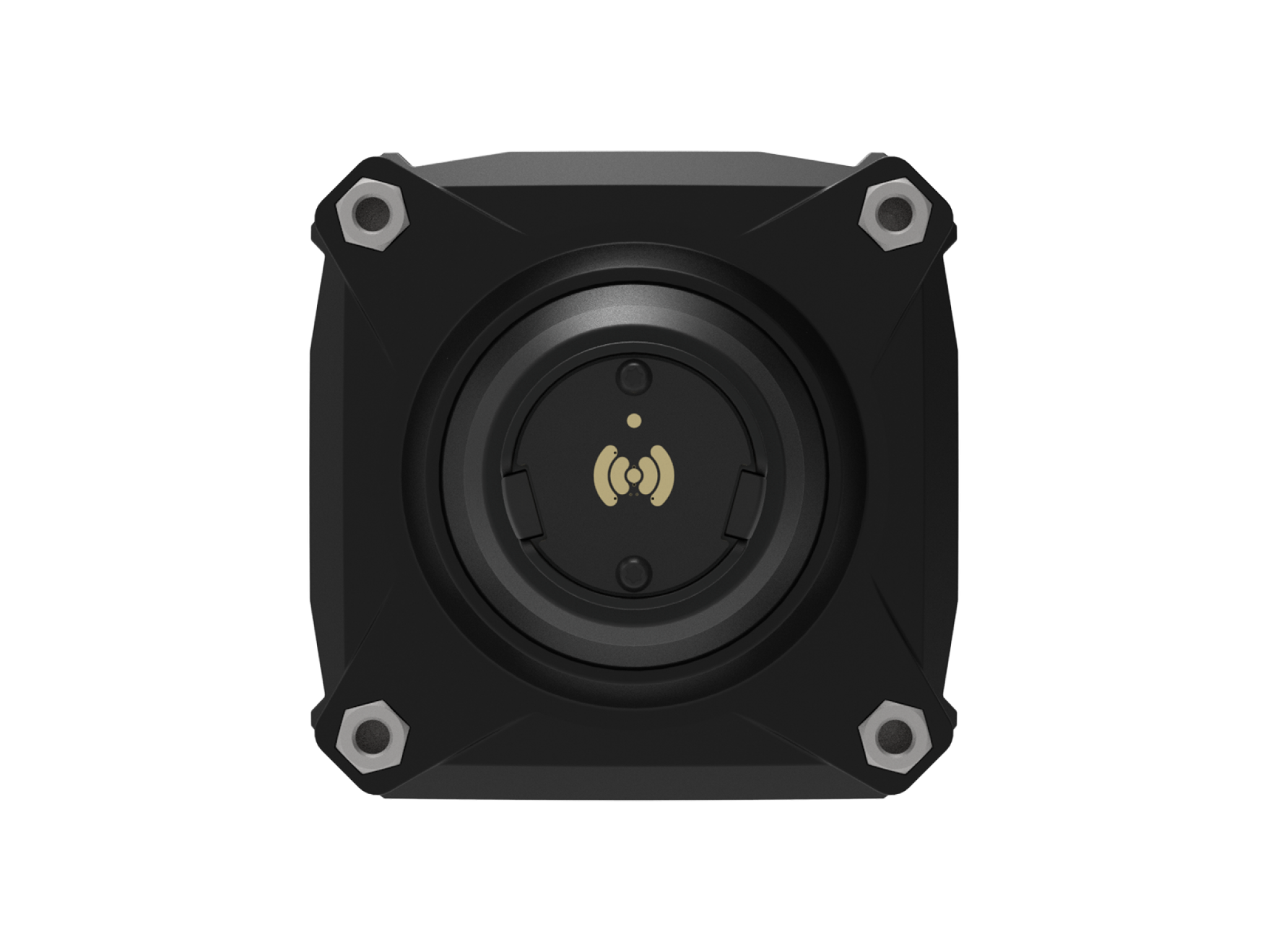

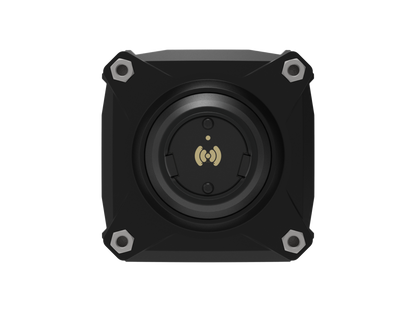

Quick Release	Integrated (NRG / D1 style), with USB (High Speed) connectivity via slip ring

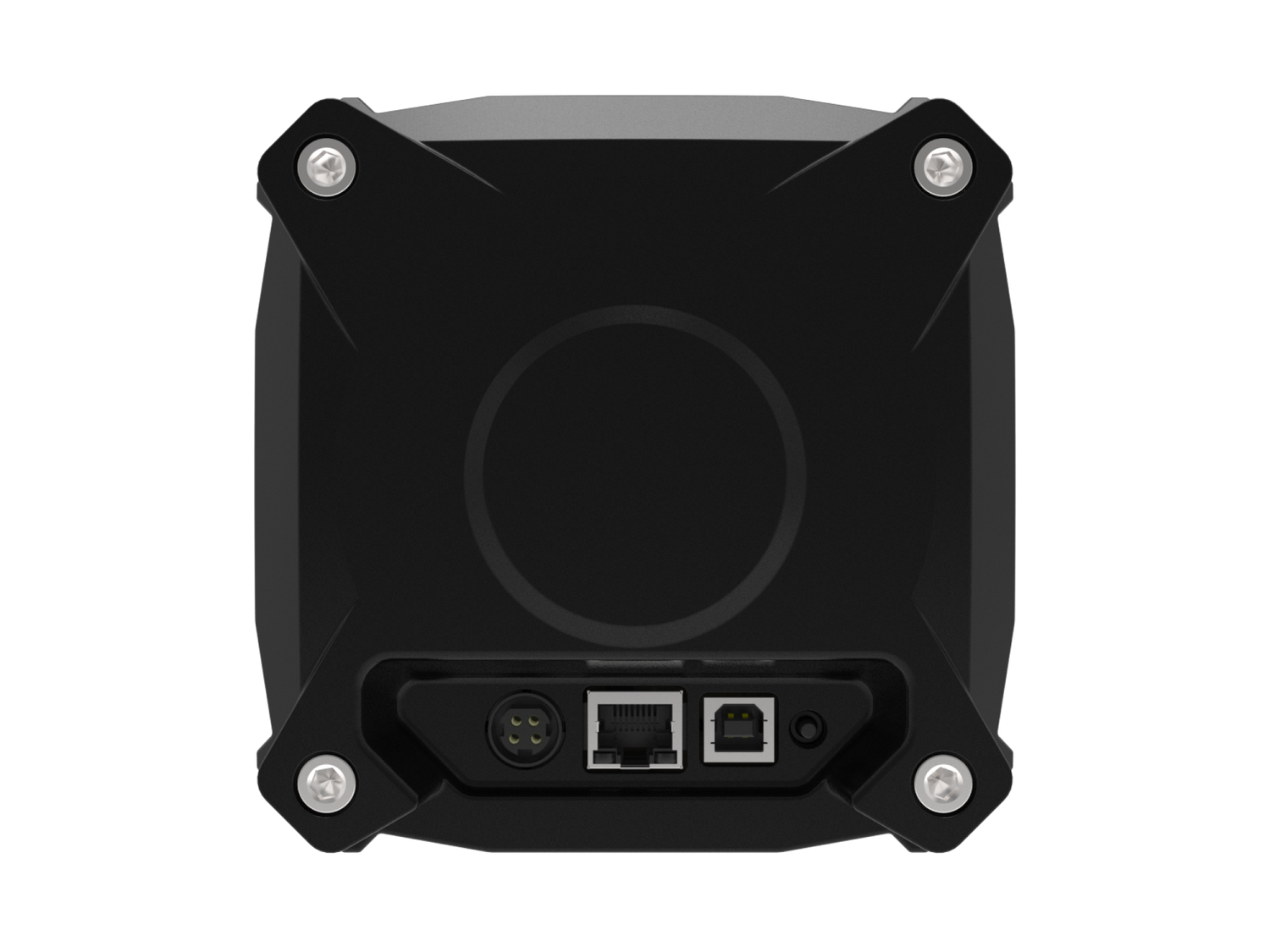

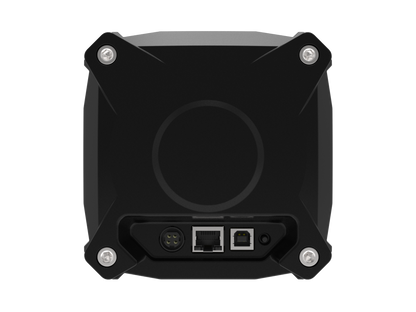

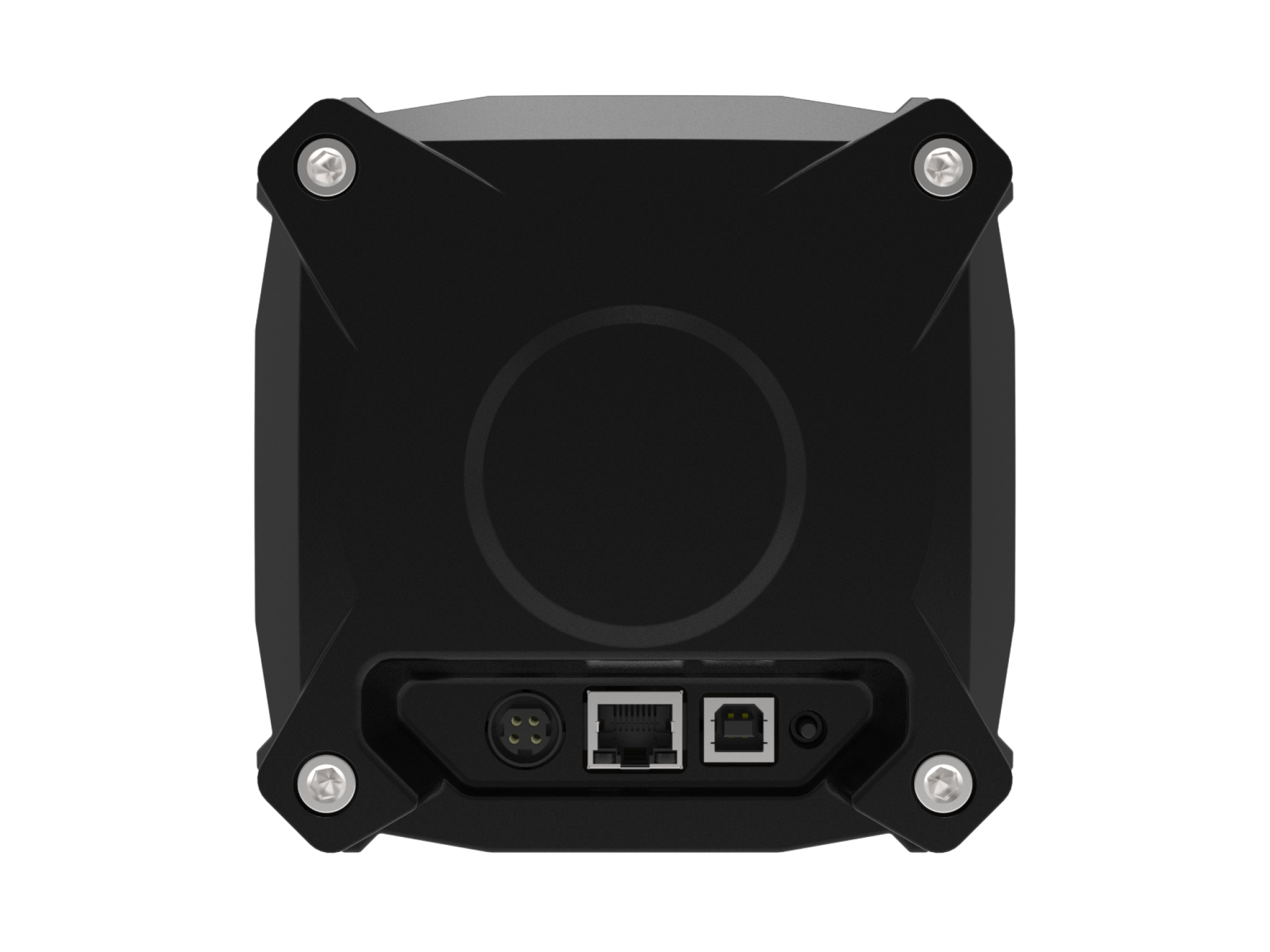

Connection Ports	DC 48V input, USB B, RJ45 safety stop connector
Mounting Method	Front and bottom mounts
Mounting Holes	4x M8 x 16mm threaded holes on the front flange with 102.5mm PCD. Bottom mount uses profile nuts M8 4x, with center distance in X-direction 78.4mm, In Z-direction the center distance is flexible from 75mm to 20mm
Side Mount Option	No
Firmware Update	with the VRS software
