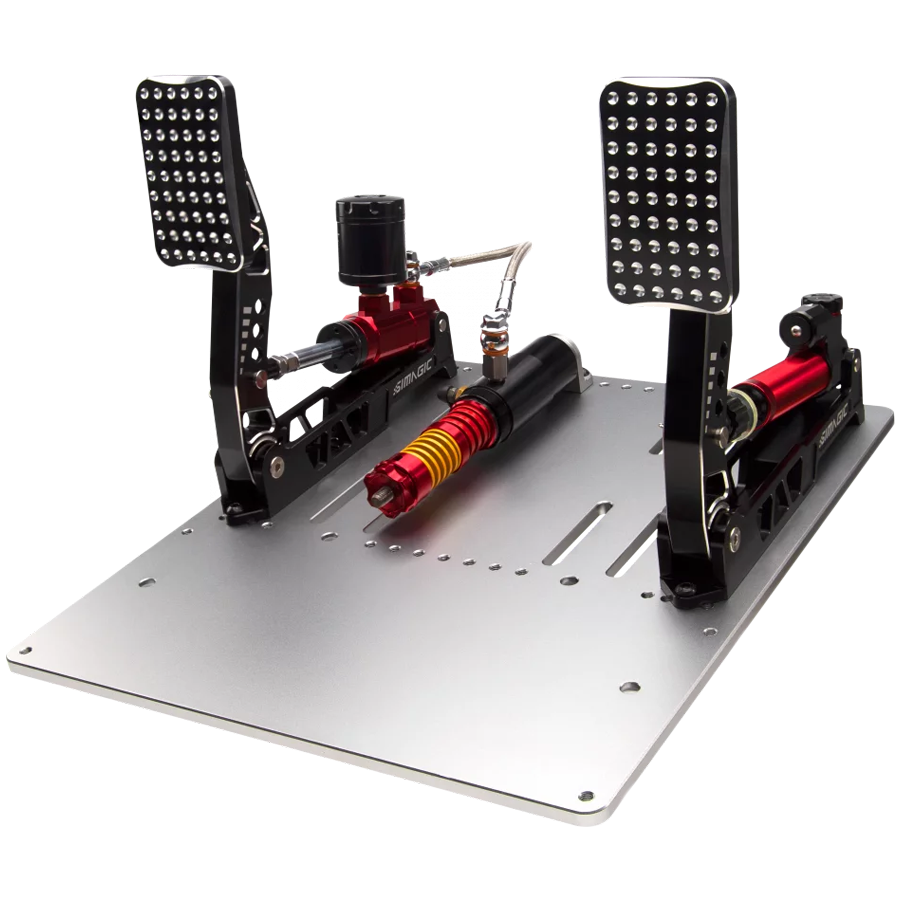

SIMAGIC P2000-S100RF Crimson Edition Hydraulic Dual Pedal Set

The SIMAGIC P2000-S100RF Crimson Edition This is a high-end hydraulic 2-pedal set for sim racers seeking uncompromising motorsport precision. Thanks to its innovative hybrid system of hydraulic cylinders and load cell sensors, it offers an authentic brake pedal feel that comes extremely close to that of a real race car – perfect for consistent lap times and maximum immersion.

The Crimson Edition It impresses with red anodized details and an improved construction for maximum stiffness and durability.

Highlights

• Hydraulic braking system: A real brake cylinder with slave cylinder simulates the progressive feel of a real brake system (pressure point, compression).

• Precise load cell technology: 100 kg (or optionally 200 kg) load cell sensors on the brake and accelerator pedal provide an ultra-fine resolution of 12 bits (4096 levels).

• Motorsport engineering: Completely manufactured from CNC-milled aluminum, developed in collaboration with racing engineers.

• Full customizability: Adjustable pedal travel, spring rate (springs included), pedal angle and damping for a customized setup.

• SimPro Manager Integration: Calibration, dead zones and curve profiles (linearity) can be easily controlled via software.

Technical data

Generally

• Model: P2000-S100RF / P2000-R Crimson Edition

• Type: Hydraulic 2-pedal set (accelerator, brake) - clutch can be retrofitted optionally

• Material: CNC-machined aluminum alloy

• Color: Black / Crimson Red (Anodized)

• Dimensions: approx. 326 mm × 380 mm × 258 mm

• Weight: approx. 6.1 kg

Electronics & Sensors

• Brake: Hydraulic system + 100 kg load cell (optional 200 kg)

• Accelerator pedal: Load cell sensor + adjustable damping

• Resolution: 12-bit (4096 steps) on all axes

• Connection: USB (PC) or directly to SIMAGIC Wheelbase

Settings

• Brake: Hardness (springs), dead zone, damping, pedal position

• Accelerator pedal: travel, spring force, pedal angle

• Software: SimPro Manager (curves, calibration)

Scope of delivery

• P2000-R Crimson Edition gas & brake pedal

• Pedal baseplate (mounting plate)

• Electronics box (Pedal Control Box)

• Replacement springs (different hardnesses for brakes)

• USB cable & mounting hardware

• Sticker set & quick start guide

Who is the P2000-R set suitable for?

For enthusiasts and pro sim racers who want to move beyond the mechanical feedback of standard load cell pedals. The hydraulics provide an unparalleled feel for the braking point – ideal for GT, Formula, and prototype cars where brake modulation is key to speed.
